Below is a table that details the dimensions and volume that each of our mini kegs and growlers can hold. It also includes the height of each of the taps as well as the max volume allowed when using Nitro.
Please ensure you consider the height of both the vessel and tap. However the taps can be removed at any time to allow you to store the keg lying down (or standing if you have room) This will leave the keg with a spear (6cm) on it (this has the valves that the tap connects to).
|Diameter||Height (Keg only, tap heights in next table)||Volume||Liquid Volume for Nitro|
|2L Standard Keg||13.5cm||20cm||2L / 6 Stubbies||1.2L / 5 x 8oz standard coffee|
|2L Black Insulated Keg||13.5cm||26cm||2L / 6 Stubbies||1.2L / 5 x 8oz standard coffee|
|4L Standard Keg||13.5cm||35cm||4L / 12 Stubbies||3.2L / 13 x 8oz standard coffee|
|4L Black Insulated Keg||17.5cm||29.5cm||4L / 12 Stubbies||3.2L / 13 x 8oz standard coffee|
|5L Standard Keg||17.5cm||28cm||5L / 15 Stubbies||4.2L / 17 x 8oz standard coffee|
|5L Black Insulated Keg||17.5cm||36cm||5L / 15 Stubbies||4.2L / 17 x 8oz standard coffee|
|10L Standard Keg||17.5cm||50cm||10L / 30 Stubbies||9.2L / 38 X 8oz standard coffee|
|19L Cornelius Standard Keg||21.5cm||64cm||19L / 57 Stubbies||18.2L / 76 x 8oz standard coffee|
|20L PET Fermenter Keg Jr||25.94cm||58.69cm||20L / 60 Stubbies||N/A|
|35L PET Fermenter Snub Nose||38cm||65.8cm||32L||N/A|
The below heights are from the mouth of the keg to the top of the tap when it is attached to the ball lock spear, except for the Party Pump which is a separate unit that screws into the mouth and does not require a ball lock spear.
|Tap / Spear Type||Height|
|Plastic Picnic Tap||12cm|
|Standard Chrome Tap||22cm|
|Steel Flow Control Tap on Steel Disconnect||20cm|
|Party Pump (Rechargeable Tap)||
|iKegger 2.0 Tap System (no regulator)||
|iKegger 2.0 Tap System (with regulator, to top of gas disconnect)||
There is 2 types of clamps:

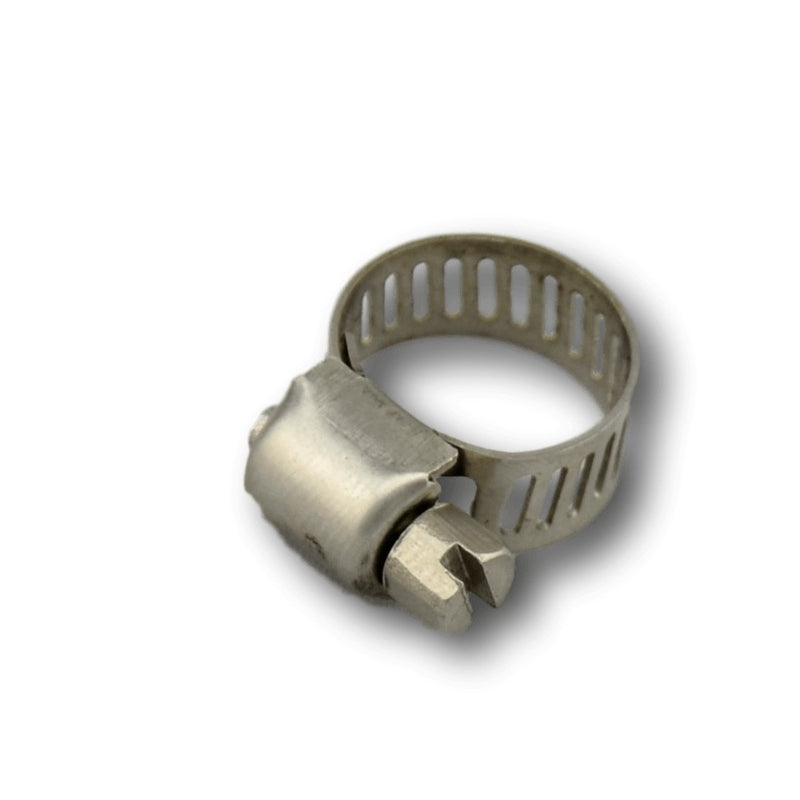

The worm drive style ones are reusable and can be tightened or loosened with a screwdriver. They don't close in a perfect circle though and could occasionally be the cause of small gas leaks.
The squeeze or stepless style clamps are single use only, they are tightened by squeezing the nipple on the side with pliers, wire cutters etc and close in a perfect circle. To remove you need to cut the clamp off, again with wire cutters or similar.
The 10.5mm stepless clamps fit our hose when used on barbed disconnects, barb and nut adapters, tap shank barbs and T-shaped line splitters.
The 12.8mm stepless are better for the M8 to Barb mini regulator outlet which has a larger barb.
The clamp tool is the best way to close the stepless clamps
Worked great for my gas lines, created a strong seal and I didn't have any leaks. For beer lines I used the duotight push fittings for easier cleaning.
Die stabile und gut verarbeitete Schlauchschelle hilft beim Fixieren von Schläuchen unterschiedlicher Größe. Ich nutze sie, um einen 9,5mm Duotight Schlauch am 7mm Nippel meines Zapfhahn zu befestigen. Die Schlauchschelle ist stabil und lässt sich leicht mit einem Schraubendreher im Durchmesser verstellen.
Vielseitig verwendbar, fixe Schlauchverbindung mit Bier- und Gasschläuchen .
Easy to use at a good price!
Fast delivery. Works as intended. Would recommend
