Below is a table that details the dimensions and volume that each of our mini kegs and growlers can hold. It also includes the height of each of the taps as well as the max volume allowed when using Nitro.
Please ensure you consider the height of both the vessel and tap. However the taps can be removed at any time to allow you to store the keg lying down (or standing if you have room) This will leave the keg with a spear (6cm) on it (this has the valves that the tap connects to).
Diameter
Height (Keg only, tap heights in next table)
Volume
Liquid Volume for Nitro
2L Standard Keg
13.5cm
20cm
2L / 6 Stubbies
1.2L / 5 x 8oz standard coffee
2L Black Insulated Keg
13.5cm
26cm
2L / 6 Stubbies
1.2L / 5 x 8oz standard coffee
4L Standard Keg
13.5cm
35cm
4L / 12 Stubbies
3.2L / 13 x 8oz standard coffee
4L Black Insulated Keg
17.5cm
29.5cm
4L / 12 Stubbies
3.2L / 13 x 8oz standard coffee
5L Standard Keg
17.5cm
28cm
5L / 15 Stubbies
4.2L / 17 x 8oz standard coffee
5L Black Insulated Keg
17.5cm
36cm
5L / 15 Stubbies
4.2L / 17 x 8oz standard coffee
10L Standard Keg
17.5cm
50cm
10L / 30 Stubbies
9.2L / 38 X 8oz standard coffee
19L Cornelius Standard Keg
21.5cm
64cm
19L / 57 Stubbies
18.2L / 76 x 8oz standard coffee
20L PET Fermenter Keg Jr
25.94cm
58.69cm
20L / 60 Stubbies
N/A
35L PET Fermenter Snub Nose
38cm
65.8cm
32L
N/A
Tap and Spear Sizes
The below heights are from the mouth of the keg to the top of the tap when it is attached to the ball lock spear, except for the Party Pump which is a separate unit that screws into the mouth and does not require a ball lock spear.
Tap / Spear Type
Height
Plastic Picnic Tap
12cm
Standard Chrome Tap
22cm
Steel Flow Control Tap on Steel Disconnect
20cm
Spear Only
6cm
Party Pump (Rechargeable Tap)
10cm
iKegger 2.0 Tap System (no regulator)
5.3cm
iKegger 2.0 Tap System (with regulator, to top of gas disconnect)
7.0cm

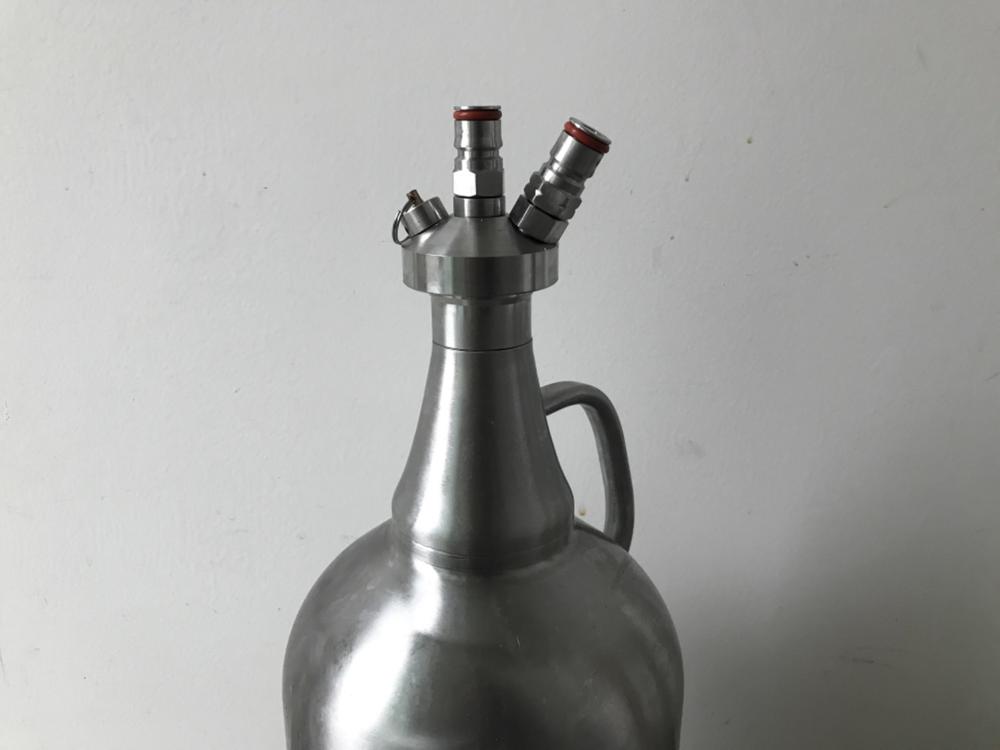

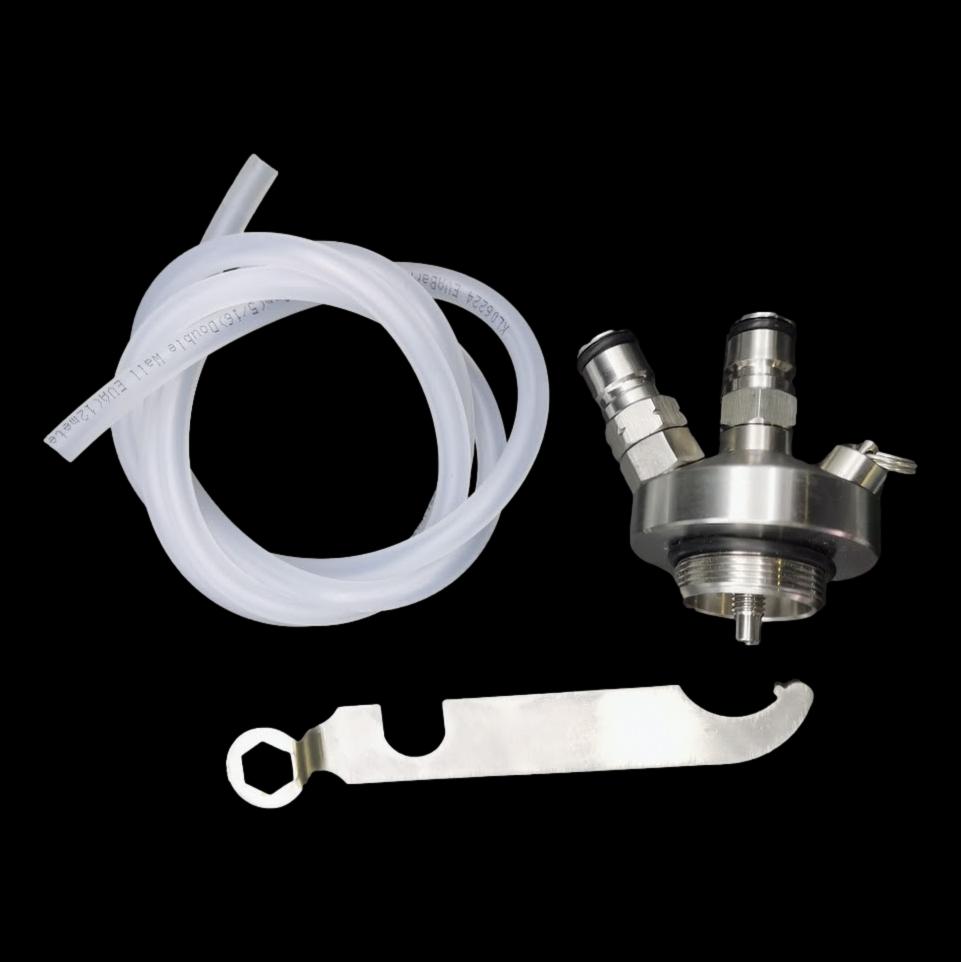

Mini Keg Spear - Gas and Liquid Ball Lock Posts and 75psi Pressure Release Valve.

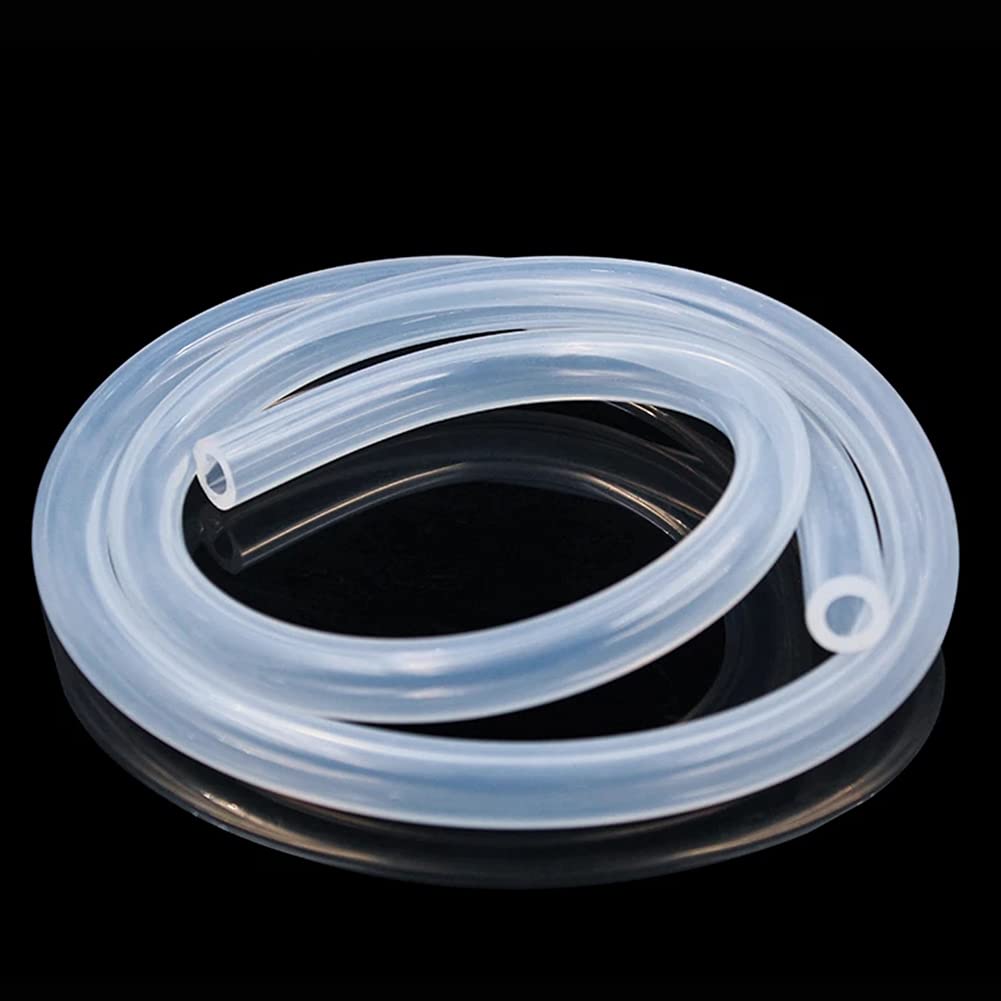

Includes a flexible silicon dip tube (cut it to the height of your keg)
Includes a spear tool for use with all the nuts on the spear.
All stainless steel construction
Has a ball lock post for the liquid and gas for easy connection and disconnection of the tap and regulator.
Has a 75psi overpressure release valve with automatic and manual operation.
Can be used with any of the tap options and any of the gas system options.
Uses flexible beer line for a dip tube (can be used lying down)

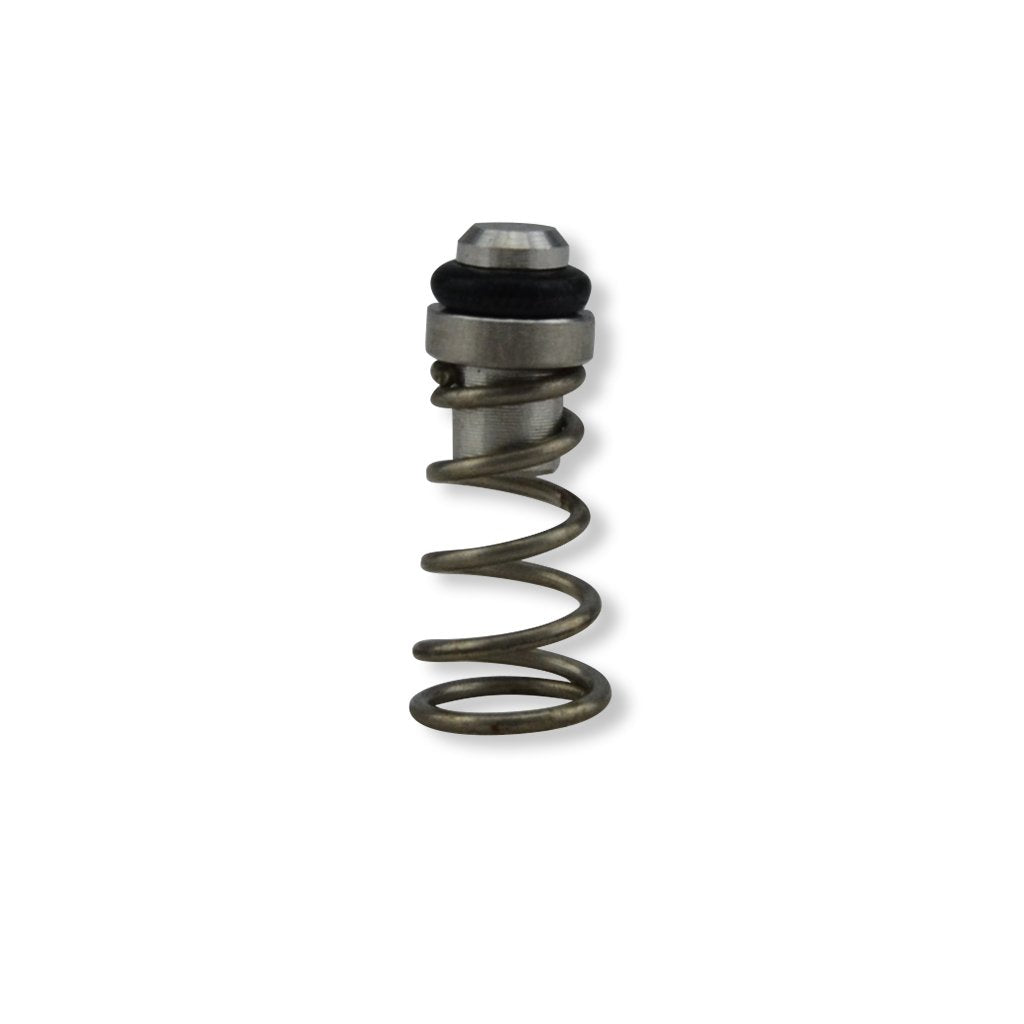

Has valves in both posts so tap and gas can be removed without losing pressure or spilling beer.
Same connections as the 19L corny keg so can be joined together in a daisy chain or do keg-keg transfers.
Use to counter-pressure fill from kegs and force carbonating homebrew, the most versatile spear by far.
