Below is a table that details the dimensions and volume that each of our mini kegs and growlers can hold. It also includes the height of each of the taps as well as the max volume allowed when using Nitro.
Please ensure you consider the height of both the vessel and tap. However the taps can be removed at any time to allow you to store the keg lying down (or standing if you have room) This will leave the keg with a spear (6cm) on it (this has the valves that the tap connects to).
|Diameter||Height (Keg only, tap heights in next table)||Volume||Liquid Volume for Nitro|
|2L Standard Keg||13.5cm||20cm||2L / 6 Stubbies||1.2L / 5 x 8oz standard coffee|
|2L Black Insulated Keg||13.5cm||26cm||2L / 6 Stubbies||1.2L / 5 x 8oz standard coffee|
|4L Standard Keg||13.5cm||35cm||4L / 12 Stubbies||3.2L / 13 x 8oz standard coffee|
|4L Black Insulated Keg||17.5cm||29.5cm||4L / 12 Stubbies||3.2L / 13 x 8oz standard coffee|
|5L Standard Keg||17.5cm||28cm||5L / 15 Stubbies||4.2L / 17 x 8oz standard coffee|
|5L Black Insulated Keg||17.5cm||36cm||5L / 15 Stubbies||4.2L / 17 x 8oz standard coffee|
|10L Standard Keg||17.5cm||50cm||10L / 30 Stubbies||9.2L / 38 X 8oz standard coffee|
|19L Cornelius Standard Keg||21.5cm||64cm||19L / 57 Stubbies||18.2L / 76 x 8oz standard coffee|
|20L PET Fermenter Keg Jr||25.94cm||58.69cm||20L / 60 Stubbies||N/A|
|35L PET Fermenter Snub Nose||38cm||65.8cm||32L||N/A|
The below heights are from the mouth of the keg to the top of the tap when it is attached to the ball lock spear, except for the Party Pump which is a separate unit that screws into the mouth and does not require a ball lock spear.
|Tap / Spear Type||Height|
|Plastic Picnic Tap||12cm|
|Standard Chrome Tap||22cm|
|Steel Flow Control Tap on Steel Disconnect||20cm|
|Party Pump (Rechargeable Tap)||
|iKegger 2.0 Tap System (no regulator)||
|iKegger 2.0 Tap System (with regulator, to top of gas disconnect)||
Not seconds stock, all new items but clearing space in the warehouse so heavily discounted.
Choose from the drop-down lists which type of coupler you need and how you want to connect the liquid and gas lines to it.

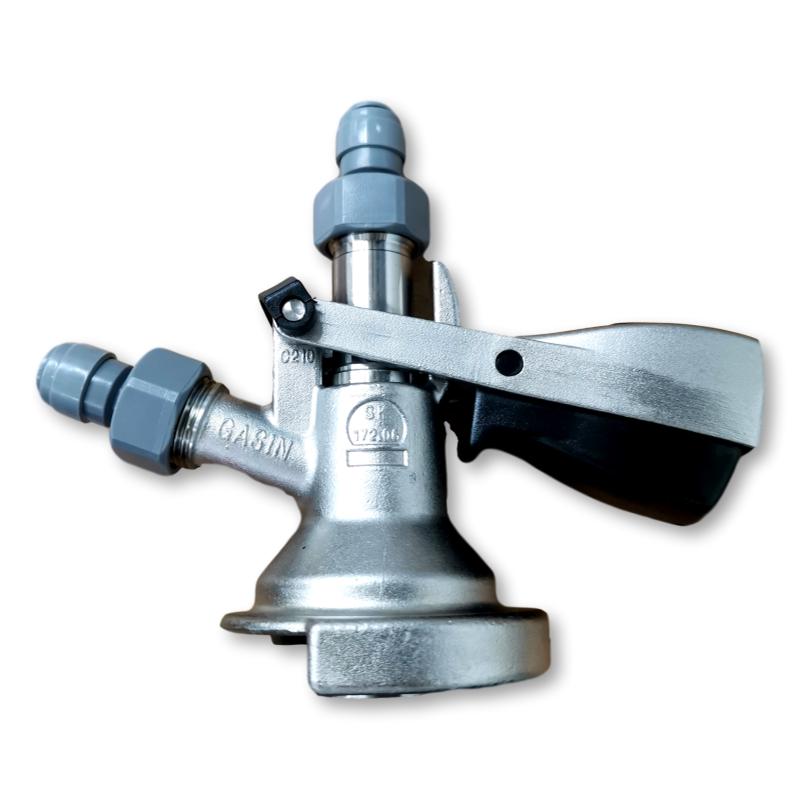

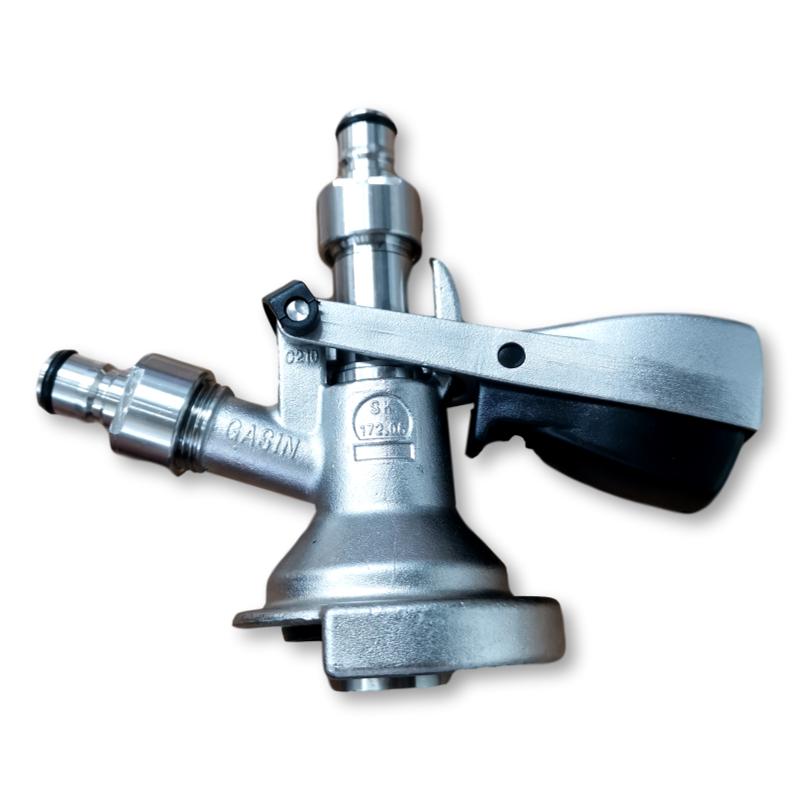

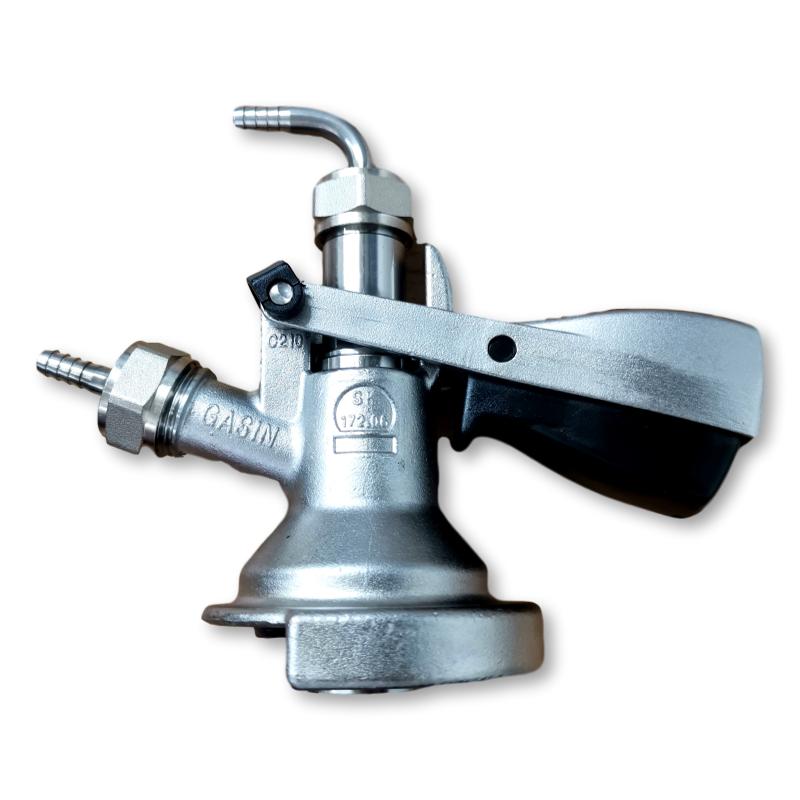

A Type Coupler: Tooheys, Coopers, XXXX, and most Craft Breweries kegs

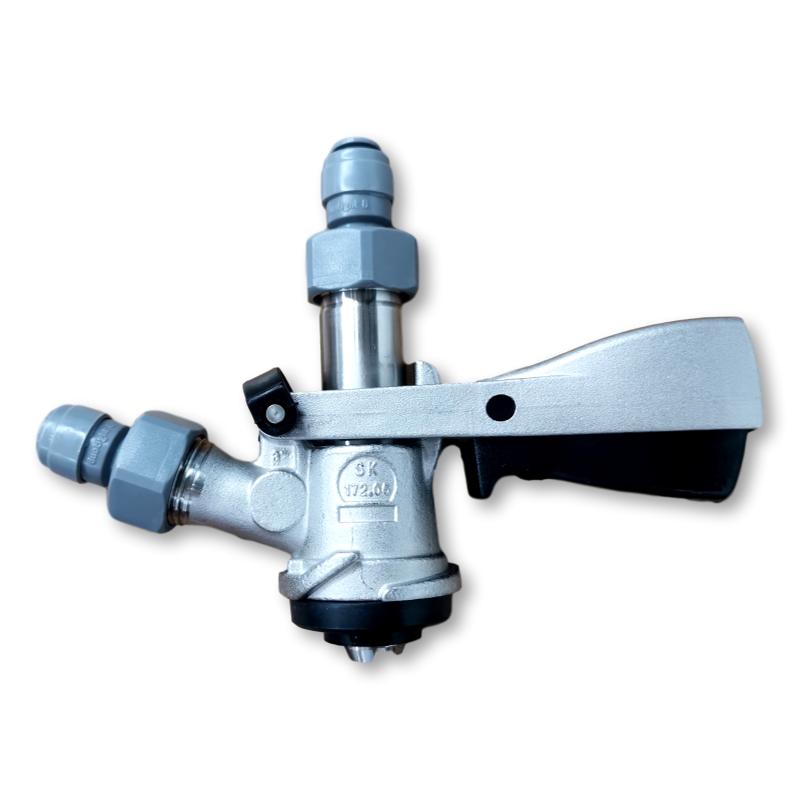

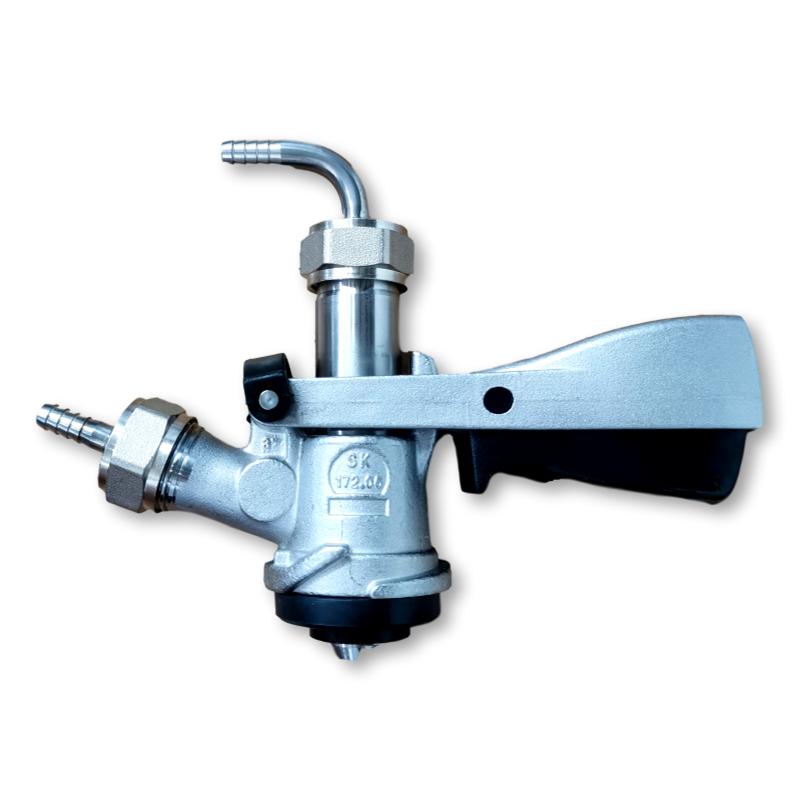

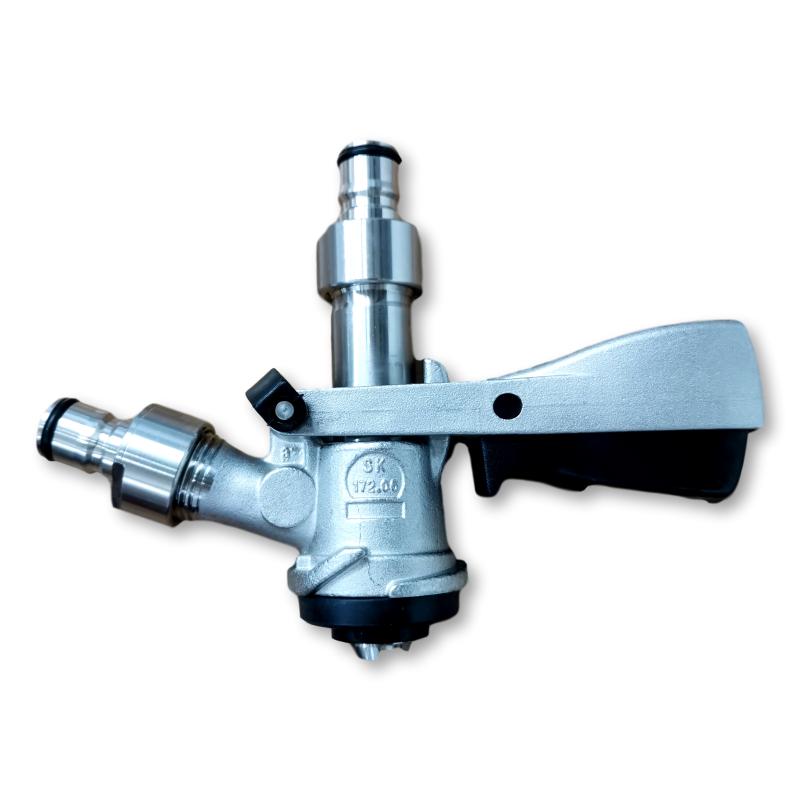

D Type Coupler: Carlton Draught, CUB, Fosters & VB Kegs

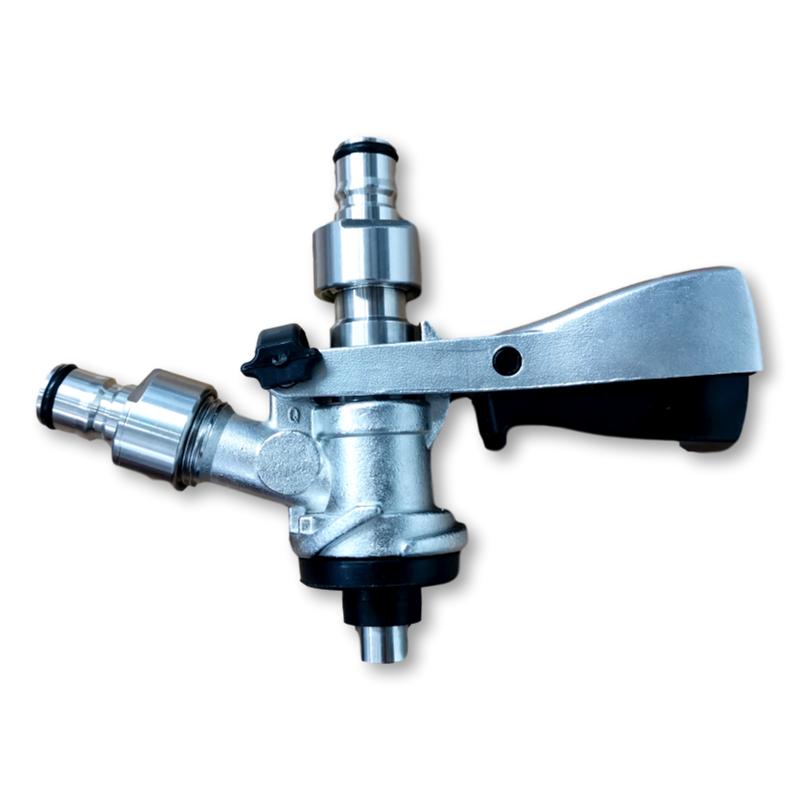

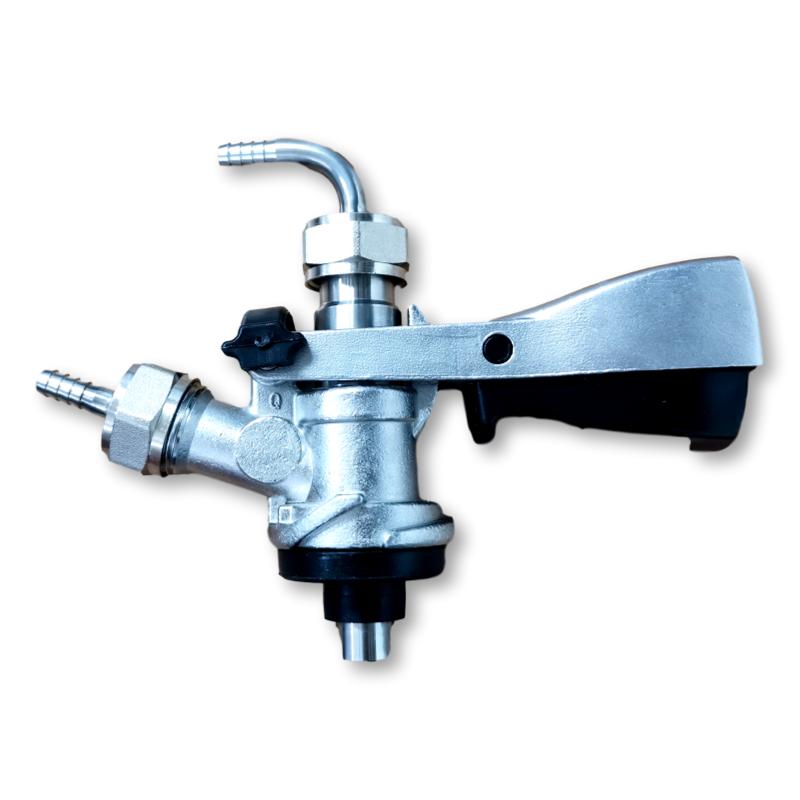

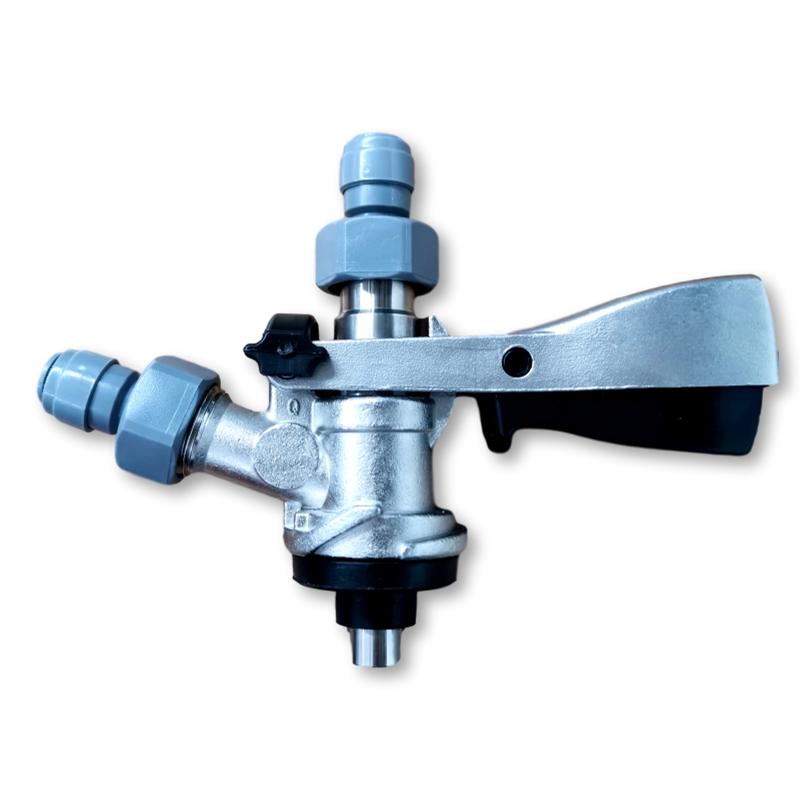

S Type Coupler: Asahi, Heineken, Hofbrau Kegs
Barbed: Suits 6mm internal silicon line with clamps
Duotight Push Fitting: Suits 8mm external hose (either 5mm or 4mm internal)
Ball Lock: Allows connecting standard homebrew keg connections to a commercial keg.
