Below is a table that details the dimensions and volume that each of our mini kegs and growlers can hold. It also includes the height of each of the taps as well as the max volume allowed when using Nitro.
Please ensure you consider the height of both the vessel and tap. However the taps can be removed at any time to allow you to store the keg lying down (or standing if you have room) This will leave the keg with a spear (6cm) on it (this has the valves that the tap connects to).
|Diameter||Height (Keg only, tap heights in next table)||Volume||Liquid Volume for Nitro|
|2L Standard Keg||13.5cm||20cm||2L / 6 Stubbies||1.2L / 5 x 8oz standard coffee|
|2L Black Insulated Keg||13.5cm||26cm||2L / 6 Stubbies||1.2L / 5 x 8oz standard coffee|
|4L Standard Keg||13.5cm||35cm||4L / 12 Stubbies||3.2L / 13 x 8oz standard coffee|
|4L Black Insulated Keg||17.5cm||29.5cm||4L / 12 Stubbies||3.2L / 13 x 8oz standard coffee|
|5L Standard Keg||17.5cm||28cm||5L / 15 Stubbies||4.2L / 17 x 8oz standard coffee|
|5L Black Insulated Keg||17.5cm||36cm||5L / 15 Stubbies||4.2L / 17 x 8oz standard coffee|
|10L Standard Keg||17.5cm||50cm||10L / 30 Stubbies||9.2L / 38 X 8oz standard coffee|
|19L Cornelius Standard Keg||21.5cm||64cm||19L / 57 Stubbies||18.2L / 76 x 8oz standard coffee|
|20L PET Fermenter Keg Jr||25.94cm||58.69cm||20L / 60 Stubbies||N/A|
|35L PET Fermenter Snub Nose||38cm||65.8cm||32L||N/A|
The below heights are from the mouth of the keg to the top of the tap when it is attached to the ball lock spear, except for the Party Pump which is a separate unit that screws into the mouth and does not require a ball lock spear.
|Tap / Spear Type||Height|
|Plastic Picnic Tap||12cm|
|Standard Chrome Tap||22cm|
|Steel Flow Control Tap on Steel Disconnect||20cm|
|Party Pump (Rechargeable Tap)||
|iKegger 2.0 Tap System (no regulator)||
|iKegger 2.0 Tap System (with regulator, to top of gas disconnect)||

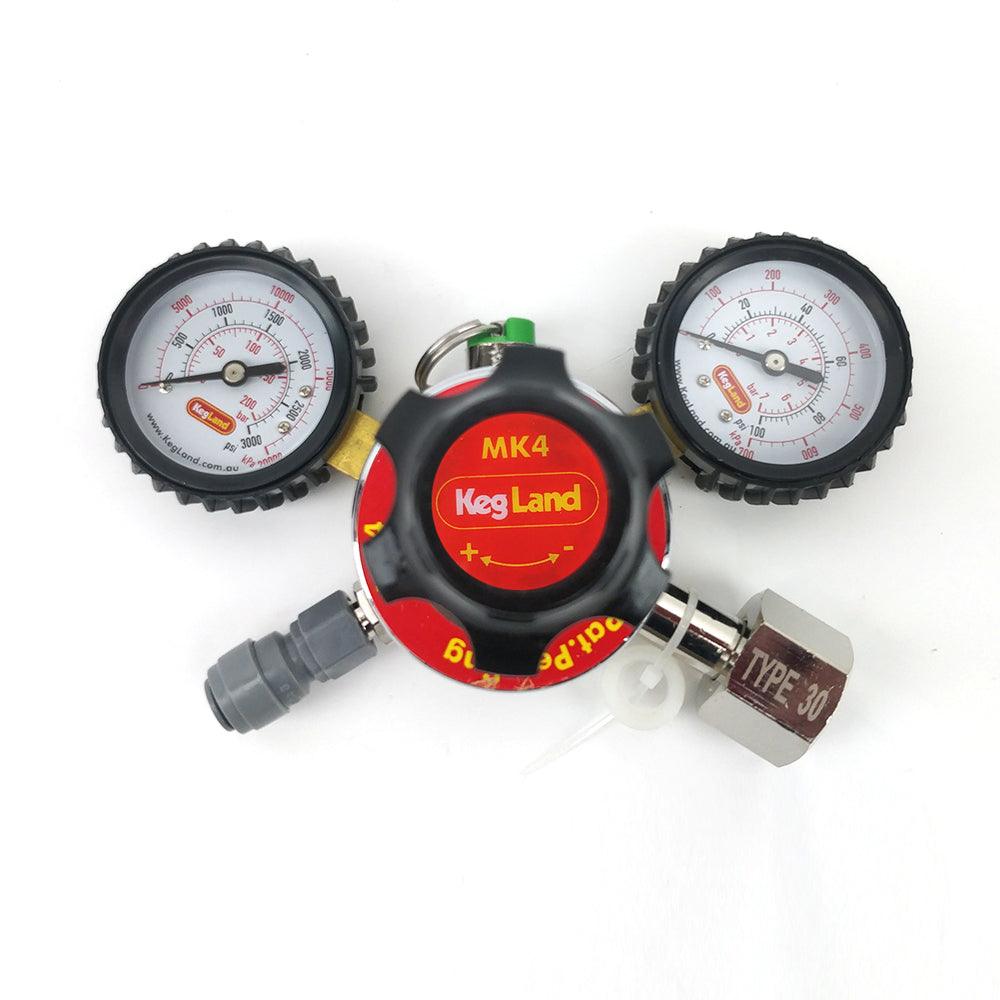

This Heavy-duty dual gauge regulator shows the remaining pressure in your gas bottle as well as the pressure inside your keg.
The Type 30 thread is the standard thread for Australian CO2 gas bottles.
Both gauges have rubber protection to help prevent damage from bumps and knocks.
The regulator has a pressure release valve and comes assembled with duo-tight push fittings and 1m of gas line along with a gas disconnect as standard. You can add more gas outlets using the drop down menus and we will assemble them for you.
This regulator is compatible with 2.6kg C02 Gas Bottle (these can be refilled all over Australia for about $40)
Using the drop-down menu you can also add adapters for using other gas sources
You can also remove the Type 30 inlet and swap it for a Type 50 inlet if you would like to use this regulator with a large refillable nitrogen gas bottle (for coffee, cocktails etc) you can add one here: Type 50 Inlet
You can source a refillable D Type Threaded Nitrogen gas bottle from your local supplier the options below have branches all over Australia or talk to your local pub and see who supplies them.

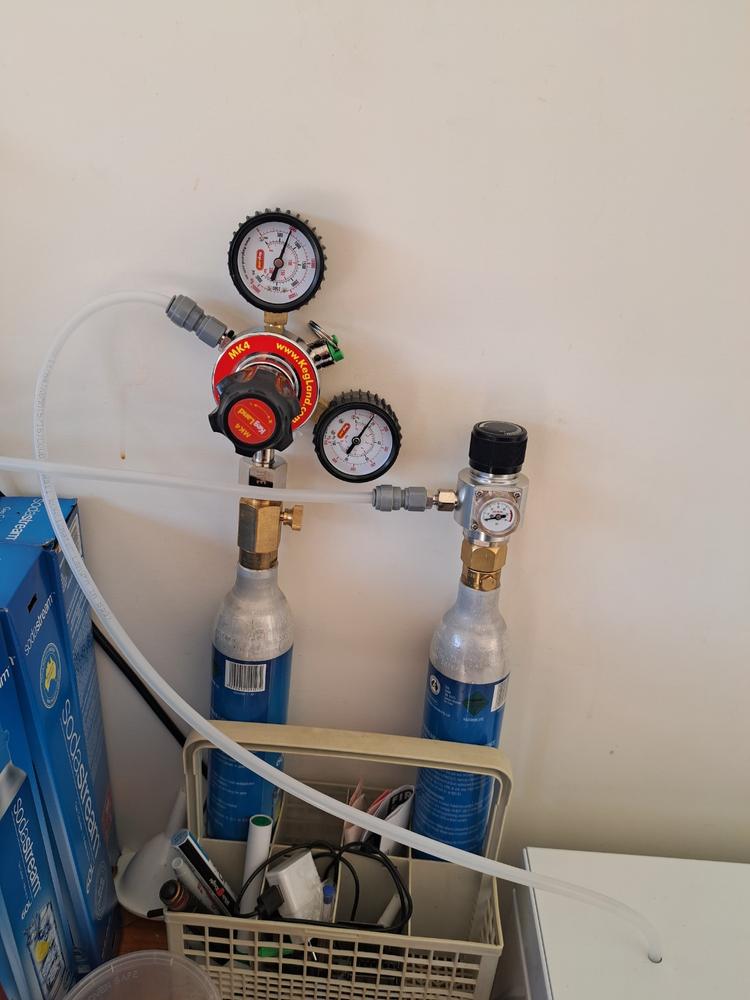

Brilliant bit of kit - really like the enhanced sodastream adaptor that enables me to connect the bottle without losing any gas.
Including the duotight fitting, gas line and disconnect with a check valve is a really nice touch. I have another regulator installed permanently on the back of my kegerator but use this one on a second gas bottle for purging and filling kegs and it's well built, accurate and a great addition to my kit.
Very good quality regulator, especially for the price, as is the M10 adapter which I purchased at the same time. Being able to get good advice online at 10pm is very impressive to say the least, that's service! Shipping was as expected with half the country in lockdown, I would definitely use again and recommend to others
The regulator has worked perfectly. The control of the regulator is good with it providing a positive feeling when adjusting. Getting a seal on the gas bottle was also good.
Excellent product, quick and easy order, delivered quickly, can't fault the service or the product
